RMZN-1108-UTP Turbidity Sensor

RMZN-1108-UTP Turbidity Sensor Product Details

RMZN-1108-UTP Turbidity Sensor Product Overview

RMZN-1108-UTP turbidity sensor is a high-performance, high-precision water quality monitoring equipment, the use of advanced combination of infrared absorption and scattering light method measurement technology. The sensor emits infrared light through the light source, the light will be scattered by the suspended particles in the water sample when passing through the water sample, the scattered light is captured by the photoelectric detector and converted into an electrical signal. After advanced analogue and digital signal processing, the sensor can accurately and quickly calculate the turbidity value of the water sample.

With its high reliability, high sensitivity and wide applicability, RMZN-1108-UTP turbidity sensor is the ideal choice for sewage plants, waterworks, water stations, surface water monitoring and industrial water quality monitoring.

RMZN-1108-UTP Turbidity Sensor Product Features

High precision measurement: Wide measurement range covering (0.01~4000)NTU, measurement accuracy better than ±2% of the measured value or ±0.1NTU (whichever is greater).

High Repeatability: Measurement repeatability of ±2%, ensuring stable and reliable data.

High resolution: the resolution varies with the range, the lowest can reach 0.01NTU, to meet the needs of different applications.

Strong pressure resistance: pressure range ≤ 0.4Mpa, suitable for a variety of complex environments.

High speed flow: the flow velocity is ≤2.5m/s (8.2ft/s), adapting to different water flow conditions.

High-quality materials: the body is made of SUS316L/titanium alloy/PVC, the upper and lower covers are made of POM, and the cables are made of PUR, which ensures that the sensor operates stably in various environments.

Convenient communication: support RS485 output, using MODBUS-RTU communication protocol, convenient to integrate with various monitoring systems.

Widely applicable: Suitable for (0~45)℃ working environment (no icing), protection grade IP68/NEMA6P, suitable for a variety of harsh environments.

Flexible cable: 10 metres cable as standard, can be extended to 100 metres as required, easy to install.

RMZN-1108-UTP Turbidity Sensor Product Specification

RMZN-1108-UTP Turbidity Sensor Dimensions

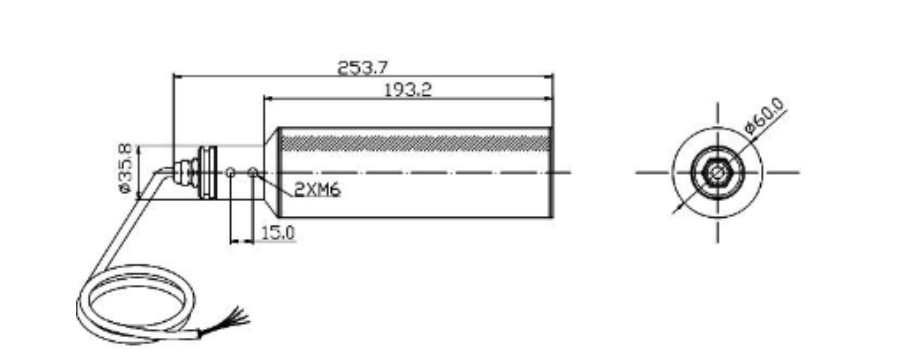

Dimensions without squeegee sensor: Please refer to Figure 1 (specific dimensions shown).

Dimensions with squeegee sensor: please refer to Figure 2 (specific dimensions shown).

RMZN-1108-UTP Turbidity Sensor Application Areas

Wastewater plant: real-time monitoring of turbidity changes in the sewage treatment process to ensure that the water quality meets the standards.

Water plant: turbidity monitoring of raw water and treated water quality, to ensure the safety of water supply.

Water station: monitoring the turbidity of surface water, groundwater and other water sources, providing a basis for water quality management.

Surface water monitoring: monitoring the turbidity of rivers, lakes and other natural water bodies, to assess the water quality situation.

Industrial field: in the pharmaceutical, chemical, food and other industries in the water quality monitoring, to ensure the quality of water in the production process.

Contacts

For more detailed information about RMZN-1108-UTP turbidity sensor, or for product customisation, technical advice and purchasing services, please contact our professional team. We look forward to working with you to promote the development and application of water quality monitoring technology.

Note: The content of this product detail page is for reference only, the specific product parameters and performance of the actual product shall prevail.
